Five axis sliding head Cnc lathe Gildemeister GD32-5A

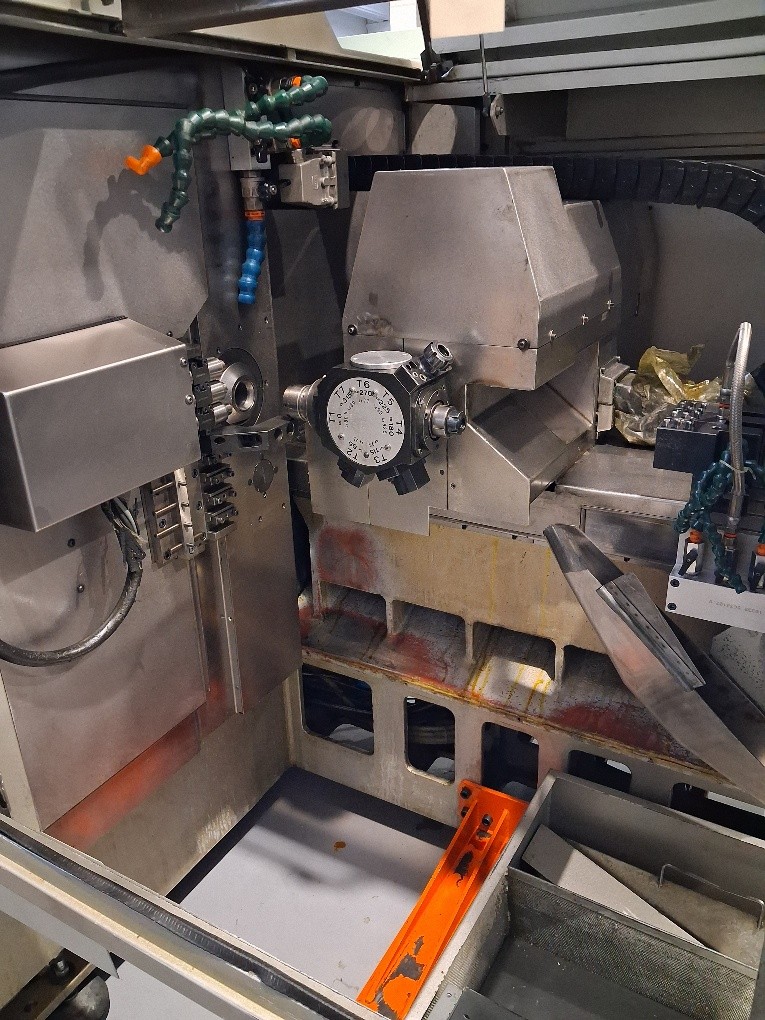

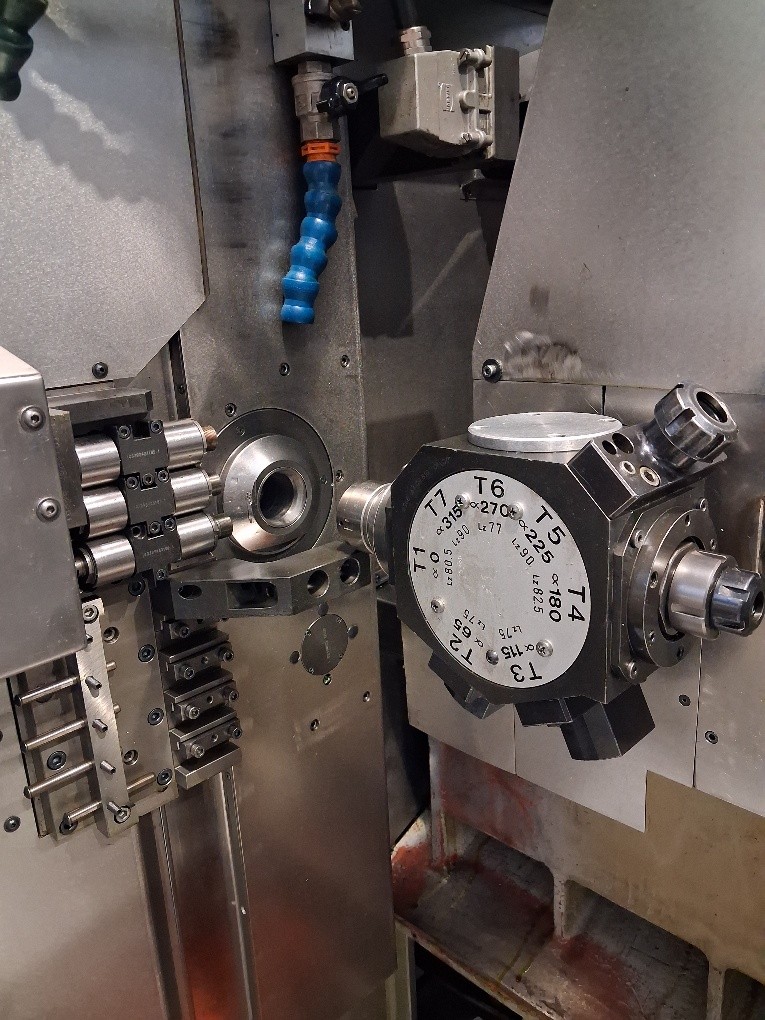

8 tools platen(5 turning+ 3 driven) - NSK 7 positions turret(3 driven,one for pick-up) - back working tools - C axis

Bar capacity 33 mm - max headstock stroke 320 mm -

Main/sub spindle speed(60-100%) 10000/5000 Rpm -

Main/subspindle motor power(60-100%)7.5-5.5/3.5 kW -

Power/speed driven tools

2.2 kW(60%)/5000 rpm

Dimensions: 2460x1510x1750h mm - Weight 2800 kg
